Loj Muaj Peev Xwm Centrifuge nrog UV Teeb Biosafety rau Laboratory Thiab Kho Mob
| Daim ntaub ntawv: | Cov chaw kuaj mob, Tsev Kho Mob, Veterinary Clinics, Food Labs, Universities & Colleges, Pharmaceutical Labs, Cell Culture Labs |
| Max. Ceev | 6000 rpm / feeb |
| Max. RCF | 4752 XNUMX xg |
| Max.Capacity | 4 * 1000ml |
| Rotors sib tw | Tsau lub kaum sab xis rotor, viav vias thoob |
| zaub | LCD |
| Model Number: | DL-5M |
| Certification: | CE, ISO13485, ISO9001, SFDA |
| warranty | 1 xyoo warranty rau tag nrho lub tshuab, 3 xyoo warranty rau lub compressor thiab 5 xyoo warranty rau lub cev muaj zog. Dawb hloov qhov chaw thiab shipping nyob rau hauv warranty. |
- Hauj lwm
- Video
- Kev Specifications
- Rotors thiab Accessories
- Kev Tshaj Loj (Competitive Advantage)

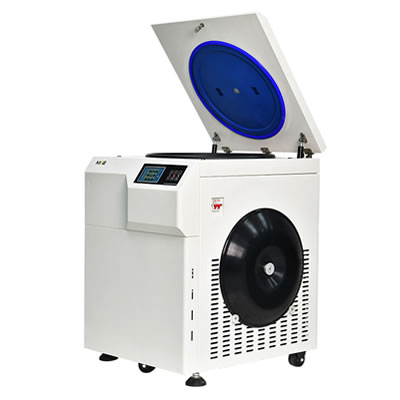

Floor standing refrigerated centrifuge DL-5M which can process the large capacity fixed rotor such as4*1000ml and can also process the swing out rotor ,widely used in the the fields of blood stations, pharmaceutical factories, biochemistry, biological products, etc. It is the ideal instrument for blood separation, protein precipitation and cell collection and conforms to CE security certification, ISO9001 and 13485 quality certification.
tsim
● Hlau vaj tse, hlau hau, thiab stainless hlau centrifuge chamber yog autoclave-tau thiab resistant detergents thiab tshuaj tua kab mob kua.
● Kev soj ntsuam qhov rai ntawm lub hau rau kev ntsuas nrawm thiab ntsuas suab nrov.
● Microprocessor tswj nrog zaus hloov AC lub cev muaj zog tsav
● LCD Saib cov tsis ceev, Timer, RCF, Rotors, Program (Nco), Cov ntaub ntawv nrawm & Deceleration thiab cov ntaub ntawv yuam kev.
● Ob chav txheej sealing nplhaib ua rau lub hau centrifuge thiab cov cuab yeej ua kom ntev zoo sealing.
● Bio-kev nyab xeeb: roj-nruj tig lub taub hau uas tuaj yeem ua kom tsis muaj menyuam ntawm qhov kub thiab txias, centrifugual kab noj hniav nrog ultraviolet sterilization muaj nuj nqi, nkag mus rau lub xeev kom tsis muaj menyuam tom qab tig lub tshuab.
● Ntau txheej tsim rau adapter, ua haujlwm tau rau 100mm thiab 75mm raj, txiav tawm lub hau, txhim kho kev ua haujlwm zoo.
● Bio-kev nyab xeeb: roj-nruj tig lub taub hau uas tuaj yeem ua kom tsis muaj menyuam ntawm qhov kub thiab txias, centrifugal kab noj hniav nrog ultraviolet sterilization muaj nuj nqi, nkag mus rau lub xeev kom tsis muaj menyuam tom qab tig.
Neeg siv tus phooj ywg
● Programmable thiab khaws cia, khaws cia txog 30 qhov kev pab cuam thiab muab kev nkag ncaj qha rau cov neeg siv nrog ib tus keystroke txuag. Cov kev txwv khaws cia: kev sib xyaw ua ke tseem nyob hauv lub cim xeeb txawm tias tom qab lub centrifugation tau raug kaw lawm.
● Muab 10 acceleration rates thiab 10 braking ramp, kom tsis txhob muaj cov sedimentation theem nrab, nrog cov nyhuv centrifugation zoo dua.
● Tsis siv neeg lub hau-xauv thiab tuav thaum lub sijhawm rotor khiav
● Hloov tau yooj yim rotors, tshwj xeeb rotor connector uas ua rau nws yooj yim rau thauj thiab unload rotor.
● Kev daws teeb meem tsis siv neeg nrog kev qhia txog qhov yuam kev thiab lub tswb ntawm lub vijtsam.
● "Mute" patent technology. Lub suab nrov qis dua 55 decibel ntawm qhov siab tshaj plaws kev sib hloov ceev.
● Tsis siv neeg rpm/rcf hloov dua siab tshiab
● Tsis siv neeg rotor identification system, coded rotor identification tiv thaiv lub rotor los ntawm kev ceev.
● CFC free tub yees system, Pre-txias feature, Precise kub tswj mus txog -20 ° C.
Kev Nyab Xeeb
● Ua raws li cov cai tswj kev nyab xeeb thoob ntiaj teb (xws li IEC 61010)
● Kev nyab xeeb hluav taws xob lub hau sib cuam tshuam, lub qhov rooj tsis tuaj yeem qhib thaum lub rotor khiav thiab lub tshuab yuav tsis khiav thaum lub hau qhib thiab yuam kev tshwm sim.
● Thaum muaj xwm ceev lub hau-xauv tso tawm thaum lub hwj chim tsis ua hauj lwm (muaj txiaj ntsig zoo hauv kev cuam tshuam tsis zoo ntawm lub hwj chim).
● Gas pob khawm rau lub hau poob kev tiv thaiv.
● Kev tiv thaiv kev nyab xeeb yog tsim rau kev kub ceev, tshaj cua sov (lub cev muaj zog, chamber), tsis sib xws thiab lwm yam kom ntseeg tau tias tus txiv neej tshuab kev nyab xeeb.
| Ntau yam ceev (rpm) | 0-6000rpm adjustable | Sij hawm ntau | 1-99 feeb adjustable |
| Max peev xwm (ml) | 4 * 1000ml | Ceev raug | ± 10r / min |
| RCF ntau (xg) | 0-4752xg adjustable | ACC/DEC | 1-10 tus nqi |
| Kev tswj qhov kub thiab txias ntau yam | -20 ℃ ~ + 40 ℃ | Kev tswj qhov kub thiab txias raug | 1 ℃ |
| Suab nrov (dBA) | 58dB (A) | Net nyhav (tsis muaj rotor) | 200KGS |
| Fais fab mov | AC220V, 50HZ, 10A, 1800W | Dimension (hli) | 790 x 670 x 900 hli (LxWxH) |
| Tsis | Yam | Max. muaj peev xwm | Max.speed | Max. RCF | Ceeb toom |
NO.1
| Lub kaum sab xis rotor | 12x 15/10/5ml | 6000r / min | 4588 XNUMX xg | PP / PC tube |
| adapter | 12 x2ml | PP / PC tube | |||
NO.2 | Viav vias rotor | Hlau ncej rotor | 5000r / min | 4752 XNUMX xg | PP / PC tube |
| viav vias ncej | 4 x100ml | PP / PC tube | |||
| viav vias ncej | 4 x50ml | PP / PC tube | |||
| adapter | 4 x 10 / 15 ml | PP / PC tube | |||
N0.3 | Viav vias rotor | Hlau ncej rotor | 4000r / min | 3041 XNUMX xg | PP / PC tube |
| viav vias ncej | 4 × 2 × 100 hli | PP / PC tube | |||
| viav vias ncej | 4 × 2 × 50 hli | PP / PC tube | |||
| viav vias ncej | 4×8×15/10/5ml | PP / PC tube | |||
| adapter | 4 x 2 x 10/15 ml | PP / PC tube | |||
| Khib | 4 x 12 x 5/2 ml | PP / PC tube | |||
NO.4 | Swing thoob | 4 × 18× 5/2ml | 4000r / min | 2773 XNUMX xg | Nqus cov hlab ntshav |
NO.5 | Swing thoob | 4 × 600 ml | 4000r / min | 3354 XNUMX xg | Rectangular hanging cup |
| Decapping adapter | 4 x 25 x 5/2 ml | PP / PC tube | |||
| adapter | 4 x 12 x 15/10 ml | PP / PC tube | |||
| adapter | 4 × 5 × 50 hli | PP / PC tube | |||
| adapter | 4 × 4 × 100 hli | PP / PC tube | |||
NO.6 | Swing thoob | 6 × 600 ml | 4000r / min | 3400 XNUMX xg | Rectangular hanging cup with wind cover |
| Decapping adapter | 6 x 25 x 5/2 ml | PP / PC tube | |||
| adapter | 6 x 12 x 15/10 ml | PP / PC tube | |||
| adapter | 6 × 5 × 50 hli | PP / PC tube | |||
| adapter | 6 × 4 × 100 hli | PP / PC tube | |||
| NO.7 | Swing thoob | 4 × 500 ml | 4000r / min | 3354 XNUMX xg | Round dai khob |
| adapter | 4 x 17 x 5/2 ml | PP / PC tube | |||
| adapter | 4 x 8 x 15/10 ml | PP / PC tube | |||
| adapter | 4 × 3 × 50 hli | PP / PC tube | |||
| adapter | 4 × 100 ml | PP / PC tube | |||
| NO.8 | Swing thoob | 6 × 500 ml | 4000r / min | 3400 XNUMX xg | Round dai cup with wind cover |
| adapter | 6 x 17 x 5/2 ml | PP / PC tube | |||
| adapter | 6 x 8 x 15/10 ml | PP / PC tube | |||
| adapter | 6 × 3 × 50 hli | PP / PC tube | |||
| adapter | 6 × 100 ml | PP / PC tube | |||
| NO.9 | Swing thoob | 4 × 800 ml | 4000r / min | 3443 XNUMX xg | Rectangular hanging cup with wind cover |
| Decapping adapter | 4 x 30 x 5/2 ml | PP / PC tube | |||
| adapter | 4 x 12 x 15/10 ml | PP / PC tube | |||
| adapter | 4 × 6 × 50 hli | PP / PC tube | |||
| adapter | 4 × 4×100ml | PP / PC tube | |||
| NO.10 | Swing thoob | 4 × 750 ml | 4000r / min | 3443 XNUMX xg | Round hanging cup |
| adapter | 4 x 26 x 5/2 ml | PP / PC tube | |||
| adapter | 4 x 13 x 15/10 ml | PP / PC tube | |||
| adapter | 4 × 5 × 50 hli | PP / PC tube | |||
| adapter | 4 × 3×100ml | PP / PC tube | |||
| NO.11 | Swing thoob | 4 × 1000 ml | 4000r / min | 3578 XNUMX xg | Rhomboid hanging cup with wind cover |
| Decapping adapter | 4 x 42 x 5/2 ml | PP / PC tube | |||
| adapter | 4 x 18 x 15/10 ml | PP / PC tube | |||
| adapter | 4 × 7 × 50 hli | PP / PC tube | |||
| adapter | 4 × 4×100ml | PP / PC tube | |||
| NO.12 | Microplate rotor | 4 x 2 x 96 po | 4200r / min | 3284 XNUMX xg | 4×2×96 Deep hole plate 4×4×96 Shallow hole plate |
| adapter | 4 × 32×1.5ml | ||||
 | |||||
1.Professional centrifuge chaw tsim tshuaj paus, sis tw nqi.
2.ISO9001, ISO13485, CE, SFDA Certification, tag nrho cov tshuab tau txais kev soj ntsuam nruj thiab zoo ntim ua ntej kev thauj mus los.
3.Long-lub sij hawm kev pab txhawb nqa thiab kev pabcuam cov neeg siv khoom nyob rau txhua theem ntawm cov khoom muag, kev xa khoom thiab kev ua haujlwm.Our pab neeg ua haujlwm tau zoo thiab muaj kev paub dhau los muab kev pabcuam tshwjxeeb rau koj qhov kev yuav khoom rau nws lub neej tag nrho.
4.Peb kuj tuaj yeem muab cov kev daws teeb meem rau cov neeg siv khoom tshwj xeeb.
5.Powered nrog ib pab pawg neeg ua haujlwm tau zoo txhawb nqa los ntawm ntau xyoo ntawm kev paub hauv lawv cov haujlwm, lub tuam txhab ua kom txhua tus thiab txhua yam khoom uas tawm hauv chav tsim khoom yog mus txog qhov cim ntawm txhua yam.
